Weighing Instrumentation Weight Transmitters
Weighing
· RS232 or RS422/RS485 output, ASCII Protocols or MODBUS RTU
· High performance and reliability
· Bipolar version ± 10V
· Upload and download function for programming with 1006 TESTER
· Directly connectable to PROFIBUS Fieldbus and to DEVICENET with optional internal board
· The connection can also be done through the external converter
· 10 points linearization
· Calibration done using certificates of transducers
· Configuration and calibration from the front panel or PC via the USB serial port, RS232/RS485 with the program INNOVATION™ (MS Windows)
· IP54 protection (front panel)

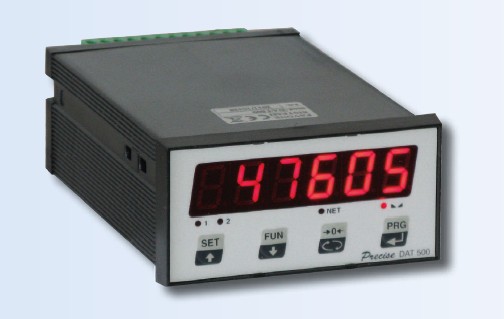

TECHNICAL CHARACTERISTICS DAT 500
|
Trasducer input voltage: |
5 V (max 6 load cells 350 Ohm) |
|
Measuring range: |
-0.5÷+3..5 mV/V (-3.9÷+3.9 mV/V optional) |
|
Input sensitivity: |
0.02 µV/ per count |
|
Linearity: |
<0.01% of full scale |
|
Gain drift: |
<0.001% full scale/ °C |
|
Display: |
6 digit, red LED (7 segments), h 14 mm |
|
LED status: |
4 red |
|
A/D Converter: |
24 bit |
|
Resolution: |
> 16.000.000 counts |
|
Visible resolution: |
60.000 divisions displayable on net weight |
|
Divisions value (adjustable): |
x1, x2, x5 |
|
Set decimal: |
0.0 ; 0.00 ; 0.000 |
|
Filter: |
0.1 ÷ 25 Hz adjustable |
|
Keyboard: |
4 tactile feedback buttons |
|
Tool voltage: |
24 V c.c. ±15% - power 5 W |
|
Temperature range: |
-10 ÷ +50 °C |
|
Storage temperature: |
-20 ÷ +70 °C |
|
Logic output: |
2 relays (clean contact) MAX 24 V c.c./100 mA cad. |
|
Logic input: |
2 optoisolated 24 V c.c. PNP (External voltage) |
|
Serial door: |
USB, RS232C or RS422/RS485 with ASCII or Modbus RTU protocols |
|
Transmission distance: |
15m (RS232C), 1000m (RS422 e RS485) |
|
FIELDBUS protocol: |
PROFIBUS, DEVICENET (opzional) |
|
Others fieldbus comunication: |
CANopen, Modbus-Plus, Ethernet and other |
|
Peak Hold function: |
for dynamic measures |
|
Baud rate: |
2400, 9600, 19200, 38400, 115200 adjustable |
|
Analogic optional output: |
optoisolated 16 Bit Tension: 0÷5/10V (R min10 K Ohm) Current: 0/4÷20mA (R max 300 Ohm) |
|
Regulatory compliance: |
EN61326-1, EN55011 and EN55014 for EMC; EN61010-1 for electrical security |
|
Electrical connection: |
Terminal screw pass 5 mm |
|
Dimensions and weight: |
96 x 48 x 120 mm (L x H x D); 250 g |
|
Drilling template: |
92 x 45 mm (L x H) |
|
BCD output: |
optional |
